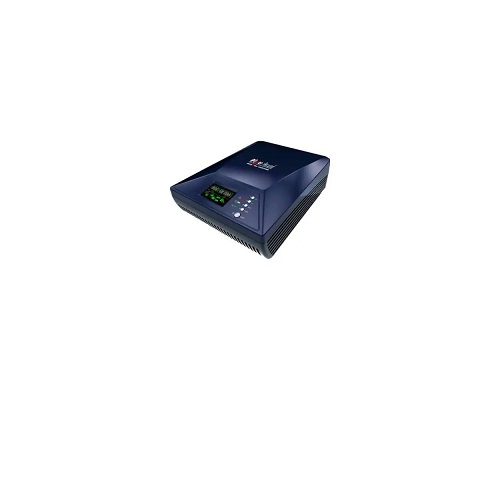

ASCEND 2KVA/24 VOLTS INVERTER

Capacity (VA/W) 2000VA/1600W
Nominal Battery Voltage 24VDC
Line Mode Input Nominal Voltage 220Vac
Voltage Range 170-280Vac (Narrow Range) 90-280Vac (Wide Range)
Normal Frequency 50Hz or 60Hz
Output Volatge 220Vac Frequency/ Waveform Following the Utility
Transfer Time 20ms Typical Back up Mode
Output Voltage 220Vac
Frequency 50Hz or 60Hz (Auto Detection) Waveform Simulated Sine Wave
Protection Discharge
Over-Charged, Over-Loading, OverTemperature, Short Circuit Protection
Battery Charger (Powered by AC) Charging Algorithim 3-Step charging
AC Charging Mode 10A/20A
Floating Charging Voltage 27.50±0.50V
Overcharging Voltage 30.6V
General Physical Dimension (D*W*H) 316mm(D)*227mm(W)*92mm(H)
Operating Environment 0-50?C, 0%-90% relative humidity (non-condensing) Storage Environment 15?C to 55?C
Noise Level Less than 50dB
